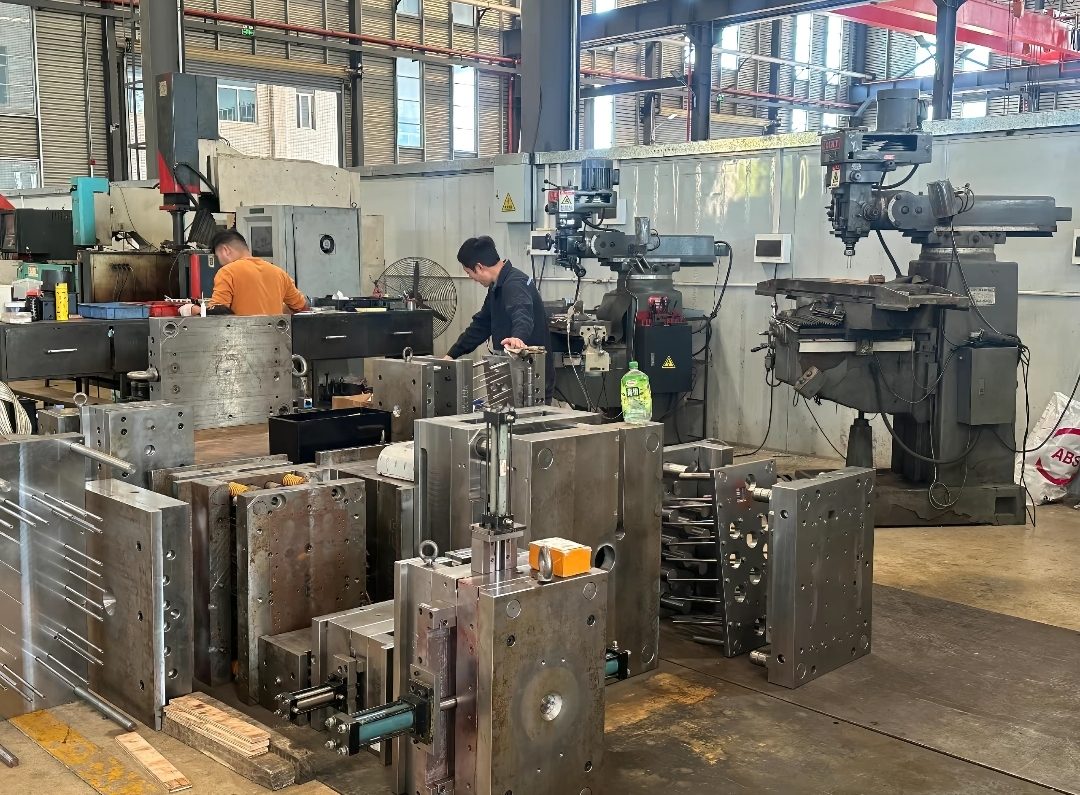

On the shop floor, a prototype mold base was being evaluated for its precise alignment and stability—a crucial aspect in prototyping that determines the quality of the final product. Ensuring geometric integrity is paramount for achieving repeatable results in prototype development. Precision elements such as exact pin placements and flatness criteria should be scrutinized to guarantee part consistency. This focus on precision helps buyers achieve high fidelity between the prototype and its production counterpart, reducing development time and mitigating the risks of costly errors in subsequent stages. It is this attention to exacting details in the prototyping phase that enables the efficient transition from concept to production, paving the way for successful product introductions.
Key takeaways
- Precision was in sharp focus as we examined a mold base designed for prototyping this week.
- Precision in mold base manufacturing is non-negotiable for successful prototyping.
- Steel types. The choice of material is critical for achieving precision in mold base manufacturing.
- Understanding realistic expectations.
On the Bench: A Prototype Mold Base
Precision was in sharp focus as we examined a mold base designed for prototyping this week. Pin placement. It’s a critical feature that must be perfect. The alignment pins are essential for ensuring that all components fit together seamlessly. If a mold base for prototyping is off by even a fraction of a millimeter in pin placement, it can translate to significant assembly issues or part misalignment. Therefore, meticulous attention to detail is key to maintaining product integrity from the onset.
Overall dimensions. Another crucial aspect is verifying the overall dimensions of the mold base. Prototypes are testaments to what’s next in production, and any error in the mold base could cascade into further issues in the final product. Ensuring precision at an industry-standard tolerance level is vital to replicate the intended design exactly as specified by the engineer, ensuring that each iteration closely mirrors the ideal end product.
Why precision matters. In prototyping, small misalignments can lead to parts that don’t fit, function, or perform as needed. This could potentially delay time-to-market and lead to additional costs for rework. It’s important for buyers to ensure that precision in the mold base for prototyping allows the parts to be assessed for fit and function before full-scale production.
Real-world examples. Recently, during a project aimed at crafting custom injection-molded plastic parts made to customer drawings, we encountered challenges with the dimensional accuracy of a mold base. General quality checks early in the process enabled identification and adjustment of discrepancies. This not only saved time and resources but also ensured that subsequent prototype iterations were flawless.
Ensuring precise alignment and accurate dimensions on the prototype mold base is integral to successful prototyping. Failure to catch errors in this phase can result in costly mistakes later on. For anyone seeking more insights on how we ensure precision in custom mold projects, you can explore custom injection-molded plastic parts made to customer drawings.
Geometric Integrity and Its Importance
Precision in mold base manufacturing is non-negotiable for successful prototyping. Exact flatness and perpendicularity are critical benchmarks. Any deviation, no matter how slight, can cascade into larger issues affecting the fit and function of molded parts. For instance, a mold base’s flatness tolerance usually ranges between ±0.01 to ±0.02 mm — a level required to ensure seamless operation in high-precision parts.
The impact of geometric precision on part quality cannot be overstated. Misalignment or imperfections in the mold base can lead directly to defects in the final product, such as warping or uneven surfaces. This is particularly damaging in prototyping, where precision dictates whether or not a part will perform as intended.
However, achieving such precise dimensions is fraught with challenges. Material properties, machine calibration, and operator skill all play pivotal roles. Metals undergo thermal expansion, which affects dimensions; machining settings must compensate for these changes to maintain geometric accuracy.
Machining Techniques Comparison
When comparing traditional and advanced machining techniques, each has its role. Traditional methods, like manual milling, offer basic precision suitable for less demanding projects. Advanced CNC machining, on the other hand, provides unparalleled accuracy and is indispensable for intricate designs.
Comparison of Machining Techniques for Mold Bases
| Technique | Precision Level | Advantages | Drawbacks | Best Use Case |
|---|---|---|---|---|
| Manual Milling | Moderate | Cost-effective, flexible tooling | Lower precision, slower production | Basic molds, low volume |
| CNC Machining | High | High precision, automated, repeatable | Higher costs, requires setup expertise | Complex designs, high precision |
| Electric Discharge Machining (EDM) | Very High | Precision for hard materials | Slow, expensive | Complex shapes, hard metals |
| 3D Printing | Variable | Rapid prototyping, complexity-friendly | Lower surface finish, material limits | Fast prototypes, complex geometries |
In prototyping, the choice of technique must align with the specific precision needs of the project. Therefore, understanding the capabilities and limitations of each machining method is essential to meet the exacting demands of high-precision mold bases.
Materials and Specifications for Mold Base Precision
Steel types. The choice of material is critical for achieving precision in mold base manufacturing. Commonly used materials include P20 and H13 steel. P20 steel offers ease of machining, making it suitable for rapid prototyping without sacrificing mold performance. On the other hand, H13 provides high thermal stability and wear resistance, essential for molds that undergo repeated heat cycles. This durability directly impacts the long-term accuracy of mold features.
Material properties and precision. Each material’s properties affect machining precision. P20 steel, with its lower hardness, allows for detailed cuts and sharp features but might wear out faster under heavy production loads. In contrast, H13 steel, with a higher hardness, resists deformation but requires precise machining techniques to avoid tool wear and dimensional inaccuracies.
Inspection specifications. During mold base inspection, precise dimensional tolerances such as parallelism of ≤0.005mm and flatness within 0.01mm are critical. Ensuring these specifications align with the intended design reduces setup times in production and ensures part repeatability. Advanced Coordinate Measuring Machines (CMMs) are often employed to verify these parameters, providing quantitative data on the mold base’s compliance.
Material-specific challenges. Machining different steels presents unique challenges. P20 steel’s machinability can lead to burr formation, compromising precision. To combat this, polishing post-machining is often necessary. For H13, managing wear on cutting tools is a priority, necessitating regular tool changes and advanced cutting fluids to maintain precision on edges and surfaces.
ISO 9001:2015 compliance. Implementing ISO 9001:2015 ensures that processes are consistently controlled and documented. This standard mandates systematic quality checks and inspections, critical for maintaining precision in mold base manufacturing. It ensures that every stage, from material selection to machining, aligns with quality objectives, reducing variability and enhancing overall product accuracy.
Using the right material and adhering to strict specifications are paramount in mold base precision. These choices impact not only the immediate prototyping phases but also the longer-term performance and reliability of the final product.
Aligning Buyer Expectations with Manufacturing Limitations
Understanding realistic expectations. When diving into precision mold base manufacturing for prototyping, it’s crucial to appreciate practical capabilities. Buyers often envision replicas with flawless precision; however, a prototype inherently allows for refinement. It is a balance between rapid iteration and the degree of precision feasible within prototype timelines and budgets. While striving for high precision is pivotal, compromises usually accompany the path to perfecting design and function in prototyping.
Common limitations and trade-offs. Precision in mold base manufacturing comes with inevitable limitations. Material choice impacts potential precision; for instance, steel offers superior durability and stability compared to aluminum but may stretch lead times. Additionally, the required tolerances in prototypes may exceed what’s immediately achievable due to inherent material variance and machining constraints. It’s common to face trade-offs between maintaining strict dimensional accuracy and the speed of prototyping, a reality that designers need to acquaint themselves with to align their expectations realistically.
Questions buyers should ask. To manage these limitations effectively, buyers must engage with manufacturers meaningfully. Key questions might include inquiries about achievable tolerances, potential material substitutions, and projected adjustments in subsequent iterations. Asking about past projects’ challenges and how they were resolved can provide valuable insight. Discussing the implications of design changes on precision and functionality can preemptively address potential issues, leading to more streamlined development cycles.
Managing expectations. Buyers should seek transparent communication from suppliers to navigate these challenges effectively. Clarifying the scope from the outset is crucial for understanding what’s feasible within the prototyping phase. Regularly discussing progress and aligning feedback can help manage expectations, especially where sectors like electronics and air purifiers demand accuracy. Trust is built when buyers are engaged and informed, which helps manage their expectations pragmatically.
For more on precision management, see our guide on Precision in Custom Injection Molds for Plastic Air Purifier Parts. By focusing on these fundamentals, buyers can effectively harness prototyping efficiencies while still achieving necessary precision levels.
What to Consider for Your Next Prototype Mold Base
Checklist for selection. Start the process by verifying the expected dimensions and material specifications against your design requirements. Ensure your chosen mold base supports these needs without unnecessary complexity. Look for compatibility with standardized parts to simplify assembly, often essential in prototyping.
Cost and lead time factors. The cost is significantly influenced by the mold base material and complexity. Simpler designs not only cost less but may also reduce lead time. Consider opting for pre-hardened steel if cycle time is your priority; it trades off some flexibility in machining but can expedite delivery. On average, high-precision molds should still be planned with adaptable timelines in mind, confirmed from production slots rather than set in stone.
Supplier capability. Identify suppliers with proven precision machining capabilities. ISO 9001:2015 certification ensures a quality management system is in place, but performance on achieving tight tolerances and consistent quality is independently demonstrable. Factors such as experienced personnel and advanced equipment like CNC machining centers should also be on your evaluation list.
Communication with manufacturers. Effective communication is key. Early and regular discussions ensure all parties are aligned on specifications and expectations. By maintaining an open line of communication, potential issues—whether regarding dimensional tolerances or delivery timelines—are addressed proactively. Manufacturer collaboration can offer insights into design adjustments that may save time or cost, ultimately leading to a more efficient prototyping process.
By keeping these factors at the forefront, you can better navigate the complexities of selecting a prototype mold base that aligns with both your project goals and manufacturing capabilities.
Final Thoughts: Evaluating Your Prototype Mold Base
Reflecting on mold base manufacturing, one must consider how precision in alignment, material choice, and geometric integrity directly affect your prototype’s success.
As you evaluate your options, tailor questions specifically to your project’s needs regarding tolerances and lead times. Exploring further into the nuances of precision machining opens opportunities for increased accuracy in future prototypes. Keep in mind that understanding these intricacies is vital to optimizing both efficiency and quality in your projects.
Frequently asked questions
What are the key considerations when choosing a mold base for prototyping?
When selecting a mold base for prototyping, focus on precision in alignment, material suitability, and geometric accuracy. Consider the intended use, dimensional tolerances, and the capability of the supplier to meet these requirements. Communication with your supplier about project specifics is essential.
How does Yiot Technology Co., Ltd. ensure mold base precision?
We are ISO 9001:2015 certified, which underscores our commitment to consistent management systems. Our focus is on geometric integrity, precise placements, and meticulous inspection to align with custom requirements.
